Step-by-Step Guide to Picking the Right Joist for Your Deck

Picking good materials helps you stop warping, splintering, and fading. You can do this diy project if you have good instructions and work carefully.

Key Takeaways

• Pick the right joist material for your deck. Aluminum is strong and safe from fire. Recycled plastic works well in wet places.

• Always follow local building codes for joist spacing and setup. This keeps your deck safe and follows the rules.

• Plan your deck layout with care. Think about the size, how you will use it, and where it will go. This helps you avoid mistakes and makes your deck work well.

• Take care of your deck often. Check it every year and clean it. This stops water damage and helps your deck last longer.

• Use the right joist spacing to stop sagging. Most decks need joists 16 inches apart.

Why Joist Choice Matters for Your Deck

Joist Function in Deck Structure

You need to understand the main job of a joist in deck construction. The joist acts as the backbone of your deck. It supports the weight of the deck boards, furniture, and everyone who uses the space. When you build a deck, the joist transfers the load from the surface down to the supporting structure. This process keeps your deck stable and helps spread out the weight. The joist also stops the boards from sagging and gives you a flat, safe walking area. If you pick the right joist, you make sure your deck construction stays strong for years.

Impact on Safety and Durability

• Joists give your deck the support it needs to stay safe and steady.

• Good joist spacing spreads out the weight and stops sagging or bending.

• If you install joists the right way, you lower the risk of warping, cracking, or even collapse.

• Using strong materials and adding protection, like joist tape, helps your deck last longer by blocking moisture.

• You avoid safety hazards when you follow these steps and use the right materials.

Compliance and Maintenance

Tip: Always check your local building codes before you start deck construction. This step helps you avoid problems and keeps your deck safe and legal. Regular checks and simple maintenance, like cleaning and sealing, keep your deck in top shape and protect your investment.

Planning Your DIY Deck Project

Assessing Deck Size and Design

You start planning your deck by measuring the space where you want to build. Use a tape measure to check the length and width. Think about how the deck will fit with your house and yard. Make sure the size matches your budget and the look you want. When planning your deck, ask yourself how you want to use the space. Do you want a spot for a grill, a table, or a hot tub? These choices affect the design and the joist layout. You also need to look at the location. Notice how much sun the area gets and if you want privacy. Good planning helps you avoid mistakes later.

• Budget: Set a spending limit before you buy materials.

• Intended use: Decide if you want a place for parties, relaxing, or both.

• Location: Pick a spot with the right amount of sun and shade.

• Size: Make sure the deck fits your yard and your needs.

• Local building codes: Always check the rules before you start.

Understanding Load and Use

You need to know how much weight your deck will hold. This is called the load. If you plan to put heavy things like a hot tub or lots of furniture, you must use stronger joists. Planning your deck for big groups or heavy snow means you need to increase the load capacity. For example, a deck with a hot tub may need to hold up to 100 pounds per square foot. Always plan for the heaviest use you expect. This step keeps your deck safe and strong.

• Think about what you will put on the deck.

• Plan for extra weight if you live in a snowy area.

• Use the right joist size for your needs.

Checking Local Building Codes

Before you buy any materials, check your local building codes. These guidelines tell you how to build your deck safely. Codes cover things like joist spacing, deck height, and railing rules. Planning your deck with these guidelines in mind helps you avoid problems. You may need a permit for your diy deck project. Always follow the guidelines to keep your deck legal and safe.

Tip: Visit your city or county website to find the latest guidelines for decks. Write down the rules before you start planning. This step saves you time and money.

Choosing the Right Joist Material

Selecting the right joist material is one of the most important steps in building a safe and long-lasting deck. You need to think about where you will build your deck, how much you want to spend, and how much maintenance you want to do. Each joist material has its own strengths and best uses. Let’s look at the main options.

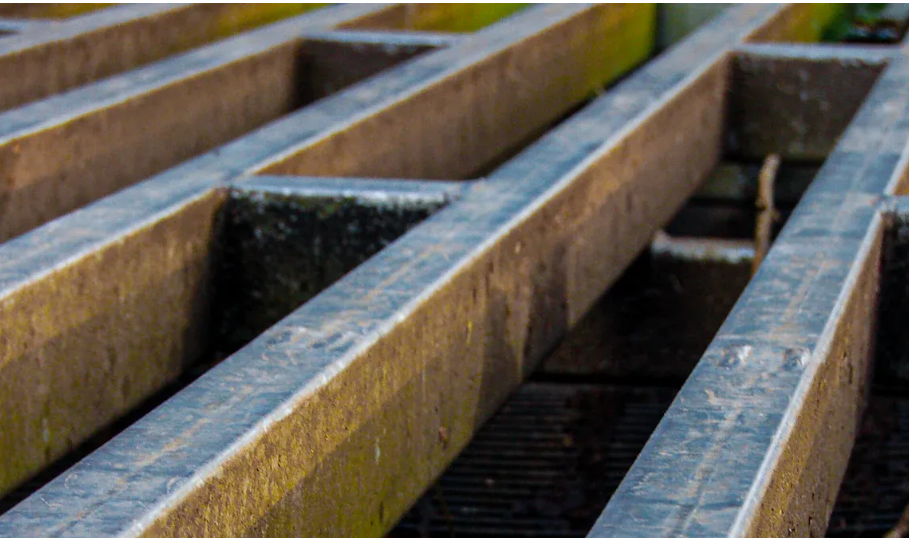

Aluminium Joists: When to Use

Aluminium joists give you the highest level of strength and stability for your deck. You can use them for balconies, terraces, and commercial spaces. Aluminium joists stay straight and do not warp or rot. They work well with pedestal systems and support heavy loads. You can trust aluminium joists in places where fire safety matters, like high-rise balconies.

Here is a table that shows the main advantages and disadvantages of aluminium joists:

You can see that aluminium joists last a long time and need little care. They do cost more at first, but you save money over time because you do not need to replace them.

Recycled Plastic Joists: Best Applications

Recycled plastic joists are a smart choice for garden decks and areas that get wet. You can use them for ground-level decks, walkways, and places with lots of rain. These joists do not rot, swell, or get eaten by insects. You only need to clean them to keep them in good shape. Recycled plastic joists also help the environment because they use old plastic.

Here is a table that explains the main features of recycled plastic joists:

You can pick recycled plastic joists if you want a deck that is easy to care for and good for the planet.

Timber Joists: Pros and Cons

Timber joists are the most common choice for home decks. You can use them for simple, low-cost projects. Timber joists work well in dry places and for short-term builds. You need to check them often for rot and insects. Timber joists cost less at first, but you may need to replace them sooner.

Here is a chart that compares the price ranges for different joist materials:

Note: Timber joists have the lowest starting price, but aluminium joists last longer and need less care.

Quick Guide: Match Joist Type to Your Project

You can use this guide to pick the right joist for your deck:

• Use aluminium joists for balconies, terraces, and places where fire safety is important.

• Choose recycled plastic joists for garden decks, wet areas, and eco-friendly projects.

• Pick timber joists for basic, budget decks in dry spots.

Summary Table

You need to use joist hangers for every joist, no matter which material you choose. Joist hangers keep your deck strong and safe. You attach hangers to the frame and then set each joist into the hangers. Make sure you use the right size hangers for your joist. Check that all hangers fit tightly and support the joist from both sides. You should use joist hangers at every connection point. Hangers help stop movement and keep your deck level. You can find hangers made for aluminium, recycled plastic, and timber joists. Always follow the instructions for your hangers. If you use enough hangers, your deck will stay safe for years.

Tip: Plan your project before you buy materials. Think about your budget, the look you want, and how much work you want to do later. The right joist and the right hangers make your deck last longer and stay safe.

Deck Joist Sizing and Span

Using Span Charts for Joist Size

When you plan your deck, you need to know how far each joist can stretch between supports. This distance is called the span. You can use a joist span table to find the right size for your project. The span depends on the wood species, the size of the joist, and how far apart you space them. For example, a Southern Pine 2x8 joist can span up to 13 feet 1 inch if you space the joists 12 inches apart. If you use Douglas Fir-Larch, a 2x10 joist can span up to 15 feet 8 inches at the same spacing. Check the chart below for more details:

You can also see the differences in span by looking at this chart:

Factors Affecting Deck Joist Sizing

Several things affect deck joist sizing. The type of wood you choose matters because some species are stronger than others. Higher quality lumber lets you use longer spans. The load on your deck also changes the span. If you plan to put heavy items on your deck, you need shorter spans for safety. Local building codes set rules for the maximum deck joist span. Always check these codes before you start your project.

Tip: Wider joists can hold more weight and let you use longer spans. Doubling the thickness of a joist can increase the span a lot.

Common Joist Sizes for Decks

Most decks use joists that are 2x6, 2x8, 2x10, or 2x12 inches. The size you pick depends on your deck joist span and the load you expect. For example, a 2x8 joist made from Southern Pine can span up to 13 feet 1 inch. If you use Redwood, a 2x10 joist can span up to 14 feet 11 inches. Look at the table below for common sizes and their maximum spans:

Understanding deck joist sizing helps you build a safe and sturdy deck. Always use a joist span table and follow local codes for your project.

Deck Joist Spacing and Layout

Standard Spacing Options

You need to understand the standard joist spacing options before you start your deck. The most common joist spacing for decks is 16 inches on center. This means you measure from the center of one joist to the center of the next. Some decking materials allow wider or narrower spacing. The table below shows the standard options for different materials:

You should always check the joist spacing requirements for your chosen decking material. This step helps you avoid sagging and keeps your deck strong.

Matching Spacing to Decking Material

You must match your joist spacing to the type of decking you use. Softwood decking works well with 16-inch spacing. Composite and PVC decking often need 12-inch spacing to prevent sagging. Hardwood decking can sometimes use up to 24-inch spacing, but you should check local codes first. The table below gives a quick reference:

When you follow the right joist spacing and spans, your deck will last longer and feel solid underfoot.

Marking and Laying Out Joists

Accurate layout is key for a safe deck. Start by hooking your tape measure on the end of the ledger board. Mark each joist location based on your deck joist spacing. Adjust the layout so all joists line up on center with the end joist. Mark the side of the crow’s foot where the joist will land. Draw a plumb line to help you align each joist during installation. Attach the rim joist to the end of the ledger with 3-inch through screws. Use the 3-4-5 method to make sure the rim joist sits square to the house.

Tip: Use a string line to transfer your layout to other beams. Always mark which side of the line the joist will sit on before you continue. This practice helps you avoid mistakes and keeps your deck frame spacing accurate.

Careful marking and layout help you meet joist spacing requirements and avoid common errors. You get a deck that looks great and stays safe for years.

Installing Joists for Your Deck

Tools and Materials Needed

You need the right tools and materials for a safe and smooth deck joist installation. Gather everything before you start your project. This step helps you work faster and avoid mistakes. Here is a list of what you should have:

• Safety equipment such as safety glasses and ear plugs

• Measuring tools like a tape measure, squares, and a level

• Hand tools including shovels and excavators

• Power tools such as a circular saw and a power drill

• Deck hardware like fasteners and joist brackets

Check your tools before you begin. Make sure everything works well. Good preparation keeps your installation safe and efficient.

Crowning, Leveling, and Securing Joists

You must check each joist for a crown. The crown is the slight curve you see when you look down the edge of the joist. Place the crown facing up. This helps the deck stay flat over time. Use your level to make sure every joist sits even with the others. Adjust the height if you need to. Secure each joist with the right fasteners and brackets. Tighten all connections so the deck frame does not move. Proper placement of every joist gives your deck a strong base. Take your time with this step for the best results.

Tip: Double-check your measurements as you go. Small errors can lead to uneven boards later.

Adding Blocking and Rim Joists

You improve the strength and shape of your deck by adding blocking and rim joists. Blocking fits between each joist. It stops the joists from twisting and adds support. Rim joists form the outer edge of the deck. They hold the ends of the joists and keep the frame square. The table below explains these parts:

Install blocking every 4 to 6 feet along the joist span. Attach the rim joists tightly at the ends. This step makes your deck last longer and feel solid underfoot.

Protecting and Maintaining Deck Joists

Moisture and Rot Prevention

You can keep your deck strong by protecting each joist from moisture and rot. Water is the main reason wood joists break down over time. You should use treated lumber that resists rot, especially for joists that touch the ground. Make sure you leave clear gaps between decking boards so rainwater can drain away. Clean your deck often to remove leaves, mildew, and algae that trap moisture. You can install a deck drainage system above the joists to keep them dry. Some people add waterproof strips or under-deck vents for extra protection.

Tip: Cover the tops of your joists with butyl-based flashing tape before you lay the decking boards. This simple step helps block water and extends the life of your deck.

Fire and Environmental Considerations

Fire safety matters for every deck, especially if you live in a fire-prone area. You should know the flame spread rating of your joist material. Class I (or Class A) means the material is most fire-resistant. Class II (Class B) and Class III (Class C) offer less protection. Aluminum joists are non-combustible and give you the highest fire resistance. Composite decking also resists fire well. Pressure-treated lumber can work if you keep up with maintenance. Always check your local building codes to make sure your deck meets safety standards.

You can also help the environment by choosing sustainable materials for your joist and deck. Recycled plastic joists lower your project’s environmental footprint and last a long time.

Long-Term Maintenance Tips

You can make your deck last longer with regular care. Use a water-resistant stain or sealer on each joist before you install the boards. Apply a sealant every one to three years to keep out moisture. Use UV-resistant stains to stop sun fading. Clean your deck often to remove dirt and debris. Install decking boards with hidden fasteners and leave a quarter-inch gap for airflow. Check and tighten all deck hardware at least once a year. Replace any corroded fasteners with stainless steel or galvanized ones. These steps keep your joists strong and your deck safe for years.

Note: A little maintenance goes a long way. Regular checks and cleaning help you avoid big repairs and keep your deck looking great.

You can build a safe and lasting deck by following these steps for your project:

1. Prepare the area and check for code compliance.

2. Install footings, ledger, and support beams.

3. Mark and cut the right joist to size, then use joist hangers for secure placement.

4. Finish the frame with rim joists and blocking.

Choosing the right joist material, using proper deck joist spacing, and protecting your frame all boost safety and durability. Always check local codes. Careful planning and correct spacing help you create a deck that adds value and stands the test of time.

FAQ

What is the best joist material for a balcony?

You should use aluminum joists for balconies. Aluminum resists fire and moisture. It stays strong for many years. Building codes often require non-combustible materials for elevated decks.

How often should you check your deck for damage?

You should inspect your deck every year. Look for loose boards, rusted fasteners, and signs of rot. Early checks help you fix problems before they get worse.

Can you use recycled plastic joists for a garden deck?

Yes, you can use recycled plastic joists for garden decks. Plastic resists rot and moisture. It works well for ground-level installations. You also help the environment by choosing recycled materials.

How do you know the right joist spacing?

Check the instructions for your decking boards. Most decks use 16-inch spacing. Composite boards may need 12-inch spacing. Always measure carefully and follow manufacturer guidelines.

Do you need special tools to install joists?

You need basic tools like a tape measure, saw, drill, and level. Use safety gear. Some joist materials may need special fasteners or brackets. Always read the installation guide before you start.
